KAPU®-NE Non-energy-absorbing lighting pole compliant with EN 12767

The non-energy absorbing KAPU®-NE poles give way to a vehicle in the event of a collision. The Finnish Transport Agency recommends using the KAPU®-NE poles on busy roads where there is no pedestrian or bicycle way or trees behind the poles. If there is a risk of a vehicle hitting a pedestrian or a tree after the pole, KAPU®-HE columns should be used.

CALL US EMAIL US
More Information
Product Details Technical Data TECHNICAL INFO
Shop Online

Click on the product categories to buy online!

Site Locator

Locate your nearest Mallatite

FIND A BRANCH
Free Delivery

Free Delivery*
*available on selected products only

TOP LINE NEW  CLASSIFICATION 20/10/2020
Superceded classification

Product typeManufacturerDistributorItem  speed  Energy.   Occ Safety.    Backfill Type.    Collapse.    Direction.   Roof indentation.

Lighting ColumnKAPU-HEMALLATITE 8 M COLUMN  50,70HE/NECSNSMD0
     70.35HE3SNSMD0
Lighting ColumnKAPU-HEMALLATITE 9 M COLUMN100,70,50 HE/NECSNSMD0
    100.35HE3SNSMD0
Lighting ColumnKAPU-HEMALLATITE 10 M COLUMN100,70,50  HE/NECSNSMD0
    100.35HE3SNSMD0
Lighting ColumnKAPU-HEMALLATITE 11 M COLUMN100,70,50HE/NEDSNSMD0
    100.35HE2SNSMD0
Lighting ColumnKAPU-HEMALLATITE 12 M COLUMN100,70,50HE/NEDSNSMD0
    100.35HE2SNSMD0
Lighting ColumnKAPU-HEMALLATITE 13 M COLUMN100,70,50HE/NEESNSMD0
    100.35HE1SNSMD0
Lighting ColumnKAPU-HEMALLATITE 14 M COLUMN100,70,50HE/NEESNSMD0
    100.35HE1SNSMD0
Lighting ColumnKAPU-HEMALLATITE 15 M COLUMN100,70,50HE/NEESNSMD0
    100.35HE1SNSMD0
Lighting ColumnKAPU-NEMALLATITE 2 to 15 M COLUMN100NECSSEMD0
    100.35NE2SSEMD0

The height of the EN 12767-compliant and CE-certified poles vary from 4 to 15 metres. The hot-dip galvanised conical steel pole structure is patented.

The poles can also be mounted on bridges. the structure complies with the requirements of the safety category NE100,2.

  • All poles have a minimum pole top diameter of 60 mm.
  • Patented hot-dip galvanised conical steel pole.
  • Complies with standards:
    • EN 12767:2007
    • EN 40-5
    • EN ISO 1461
  • CE-certified
  • We reserve the right to make changes to the technical specifications.

Straight poles



TypeHeight h/mW mmd 1 mmd 2 mmd 3 mmWeight kg Technical name

KAPU-NE 4 S 604-135846040 4MS NE100 2
KAPU-NE 5 S 605-135846043 5MS NE100 2
KAPU-NE 6 S 606-135846048 6MS NE100 2
KAPU-NE 7 S 607-157846050 7MS NE100 2
KAPU-NE 8 S 608-157846055 8MS NE100 2
KAPU-NE 9 S 609-181846083 9MS NE100 2
KAPU-NE 10 S 6010-181846088 10MS NE100 2
KAPU-NE 11 S 6011-202846097 11MS NE100 2
KAPU-NE 12 S 6012-2028460102 12MS NE100 2
KAPU-NE 12 S 7612-21810076123 12MSE NE100 2
KAPU-NE 13 S 7613-21810076131 13MS NE100 2
KAPU-NE 14 S 7614-21810076139 14MS NE100 2
KAPU-NE 15 S 7615-21810076148 15MS NE100 2

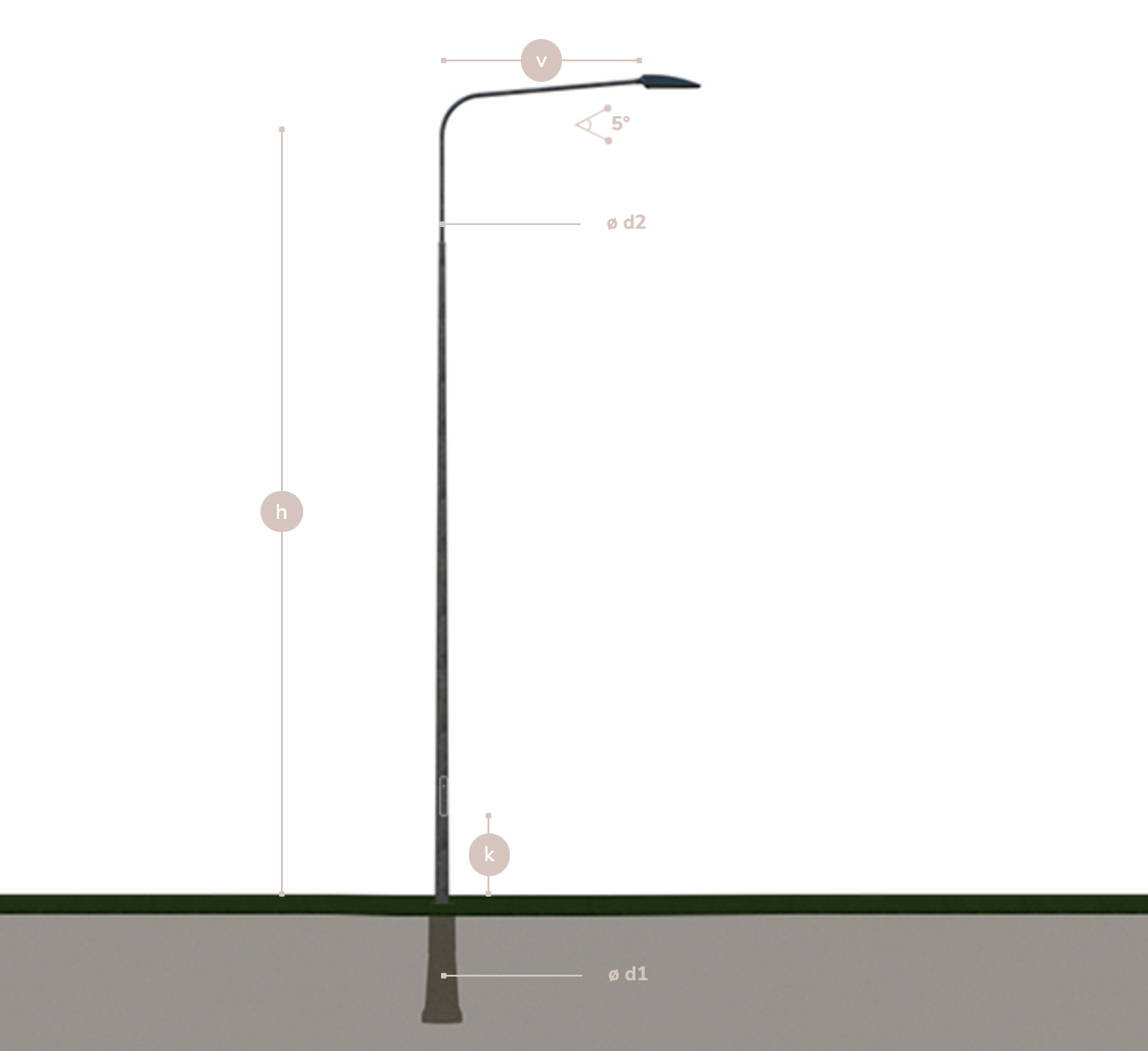

Single-arm poles



TypeHeight h/mW mmd 1 mmd 2 mmd 3 mmWeight kg Technical name

KAPU-NE 8 P 60 1081157846058 8MP10 NE100 2
KAPU-NE 8 P 60 1581,5157846060 8MP15 NE100 2
KAPU-NE 8 P 60 2082157846063 8MP20 NE100 2
KAPU-NE 8 P 60 2582,5157846065 8MP25 NE100 2
KAPU-NE 10 P 60 10101181846091 10MP10 NE100 2
KAPU-NE 10 P 60 15101,5181846094 10MP15 NE100 2
KAPU-NE 10 P 60 20102181846097 10MP20 NE100 2
KAPU-NE 10 P 60 25102,5181846099 10MP25 NE100 2
KAPU-NE 10 P 76 4010419610076119 10MP40 NE100 2
KAPU-NE 12 P 60 101212028460107 12MP10 NE100 2
KAPU-NE 12 P 60 15121,52028460109 12MP15 NE100 2
KAPU-NE 12 P 60 201222028460112 12MP20 NE100 2
KAPU-NE 12 P 60 25122,52028460114 12MP25 NE100 2
KAPU-NE 12 P 76 4012421810076140 12MP40 NE100 2


Double-arm poles



TypeHeight h/mW mmd 1 mmd 2 mmd 3 mmWeight kg Technical name

KAPU-NE 8 T 60 1081157846064 8MT10 NE100 2
KAPU-NE 8 T 60 1581,5157846069 8MT15 NE100 2
KAPU-NE 8 T 60 2082157846073 8MT20 NE100 2
KAPU-NE 8 T 60 2582,5157846077 8MT25 NE100 2
KAPU-NE 10 T 60 10101181846097 10MT10 NE100 2
KAPU-NE 10 T 60 15101,51818460102 10MT15 NE100 2
KAPU-NE 10 T 60 201021818460106 10MT20 NE100 2
KAPU-NE 10 T 60 25102,51818460110 10MT25 NE100 2
KAPU-NE 12 T 60 101212028460117 12MT10 NE100 2
KAPU-NE 12 T 60 15121,52028460119 12MT15 NE100 2
KAPU-NE 12 T 60 201222028460124 12MT20 NE100 2
KAPU-NE 12 T 60 25122,52028460129 12MT25 NE100 2
KAPU-NE 15 T 76 02150,221810076148 15MT2 NE100 2
