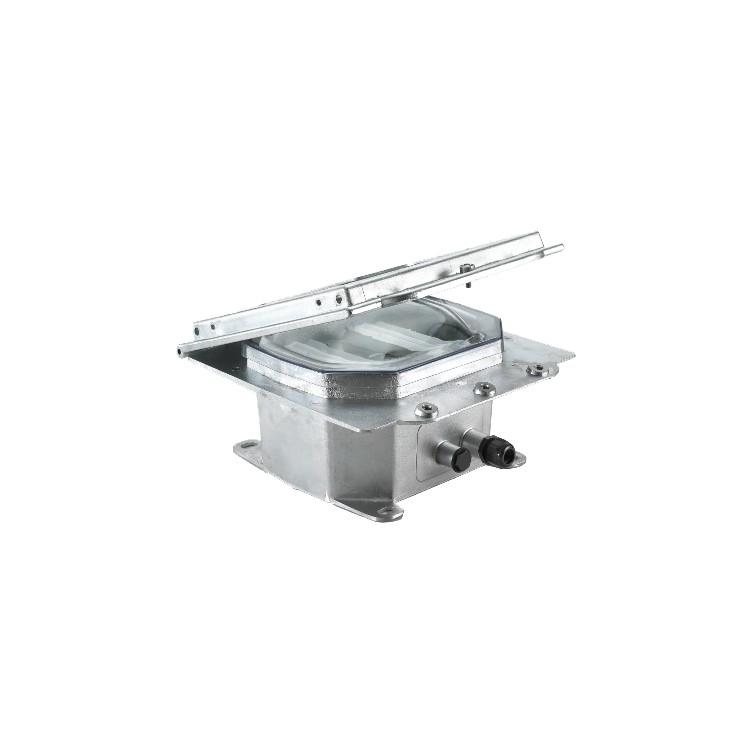

Superior Baselight

Back to Range

Hinged Base Light For Illuminating Traffic Bollards

Cast from LM6-M cast aluminium and engineered to withstand the effects of multi-directional bollard impact.

Long-life energy efficient LEDs
IP67 hinged access
Twin electrical connection turrets front and rear
Compatible with all industry standard base lit traffic bollards
Easy to install and maintain
Fully UK compliant
Non corrosion guarantee of 15 Years

BUY NOW CALL US EMAIL US

More Information

Product Details Technical Data TECHNICAL INFO

Shop Online

Click on the product categories to buy online!

Site Locator

Locate your nearest Mallatite

FIND A BRANCH

Free Delivery

Free Delivery*
*available on selected products only

Base:

LM6-M cast aluminium body
Large internal capacity
Front and rear twin 25mm IP68 glands
4 bolt down anchor points/feet
Continuous overhang ‘Ground Line’ cast into unit
12mm non-hydroscopic WBP plywood base
M8 earth stud
4mm thickness Lid / Lens:
Domed 5mm UV stable polycarbonate lens
Tool free lens replacement
Hinged LM6-M lid with bolt/pin retaining sections
Single angled tri-head lock as standard with the option of 2 or 3 point locking

Activation:

Infrared (IR) photocell (optional)
CMS compatibility (optional)

Compatibility:

30mm up stand for bollard mounting
Pin and machine screw location points
Compatible with any industry standard bollard
Conversion plates available

Light source: 6 High power 6,000k LEDs
Built-in driver
Output: 660 lumens
Connection: Plug & socket
Power Consumption: 5W
Power Supply: 230V
Power Factor: ≥0.85
UMSUG charge code: 40 0004 0000 100

Maintenance: The SuperiorBase is very low maintenance. All external surface of the lens can easily be cleaned with a mix of mild detergent and water. A regular inspection and cleaning schedule is recommended to ensure optimum performance of all traffic products.
