Complete Aluminium Offset Brackets

The aluminium brackets provide a very strong fitting for small signs and are highly resistant to vandalism. See construction chart for full details.

The aluminium bracket was developed to satisfy the requirement for a truly universal bracket for fingerpost and other cantilever designs. Suitable for round or rectangular posts. Accepts band or Uni-Clamp mounting. In exposed areas where sign rotation could be a problem, Signfix Anti-Rotational Uni-Clamps can be coupled to the Offset Brackets as shown. The Uni-Clamps can also be used in a back-to-back situation for double offset signs such as fingerposts.

Shop Online

Click on the product categories to buy online!

Free Delivery

Free Delivery*
*available on selected products only

.

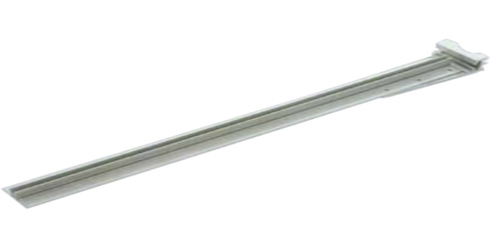

Aluminium offset bracket with riveted Tee section


This bracket comes with a riveted double tee channel section off which can be supplied in various lengths and finishes, please refer to the product code table below and the construction guide for installation assistance.

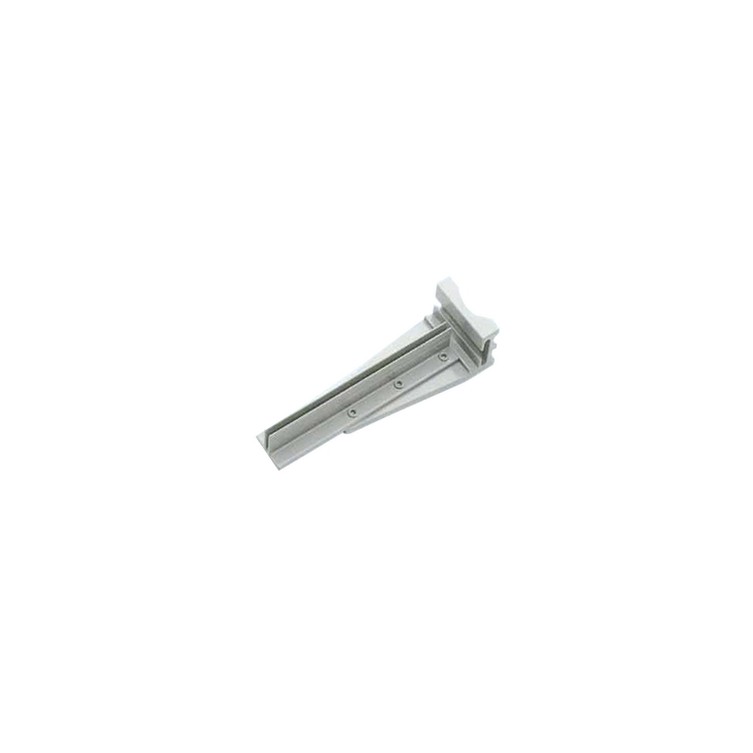

Mini aluminium offset bracket with riveted Mini-Tee section



This bracket comes with a riveted mini tee channel section off which can be supplied in various lengths and finishes, please refer to the product code table below and the construction guide for installation assistance.

Construction Guide



The offset brackets can be fixed in one of the two methods.  The banding method offers versatility for a wide range of diameter posts and cross section that standard clips cant accommodate. The Uni-clamp methods offers a robust method of installation for standard diameter post sizes.

Uni-Clamp Option

Banding Option



Uni Clamp bracket options

Set of two square halves. CODE: AUOB

One singular round half. CODE: AUOC

Set of one singular round half and one square half. CODE: AUOO



Cantilever system construction guide

SIZE OF SIGN PLATEBRACKETSTEE SECTIONBANDING
UPTO 450MM (18”) WIDE2 Aluminium Offset BracketsMini-Tee19mm x 0.73mm (3⁄4”x0.029”)
UPTO 1200MM (48”) WIDE OR 0.56M2 (6FT2) IN AREA2 Aluminium Offset BracketsDouble-Tee19mm x 0.73mm (3⁄4”x0.029”)
1200MM – 1500MM (48”- 60”) OR 0.56M2 – 0.72M2 (6FT2 – 7.5FT2)4 Aluminium Offset BracketsDouble-Tee19mm x 0.73mm (3⁄4”x0.029”)

Product Codes & Specification

Mini aluminium offset bracket with riveted Mini-Tee section

PART NUMFINISHLENGTH (MM)
OSBMM150Mill150
OSBMM225Mill225
OSBMM300Mill300
OSBMM375Mill375
OSBMM450Mill450
OSBMP150Painted150
OSBMP225Painted225
OSBMP300Painted300
OSBMP375Painted375
OSBMP450Painted450
Aluminium offset bracket with riveted Tee section
PART NUMFINISHLENGTH (MM)
OSBLM450Mill450
OSBLM525Mill525
OSBLM600Mill600
OSBLM675Mill675
OSBLM750Mill750
OSBLM825Mill825
OSBLM900Mill900
OSBLP450Painted450
OSBLP525Painted525
OSBLP600Painted600
OSBLP675Painted675
OSBLP750Painted750
OSBLP825Painted825
OSBLP900Painted900
